FUSION 2V OPZV GEL
FUSION 2V OPZV GEL

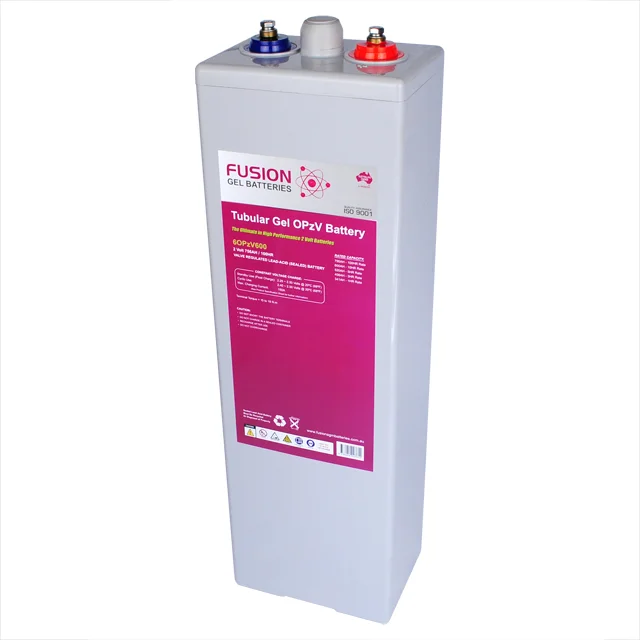

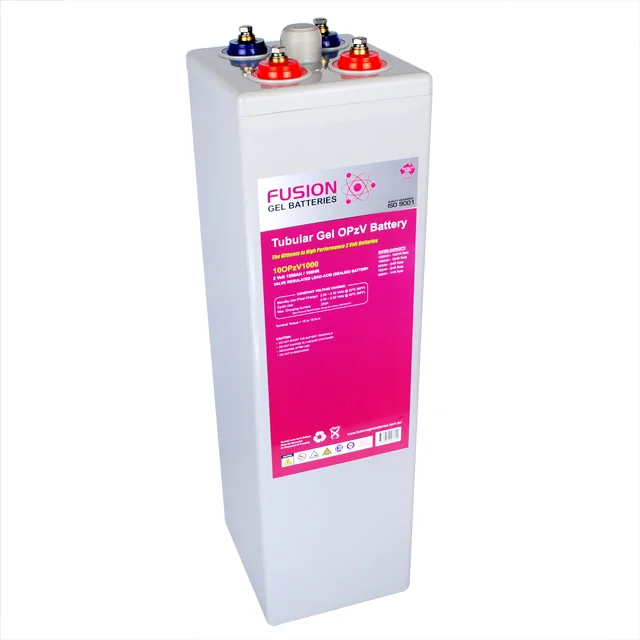

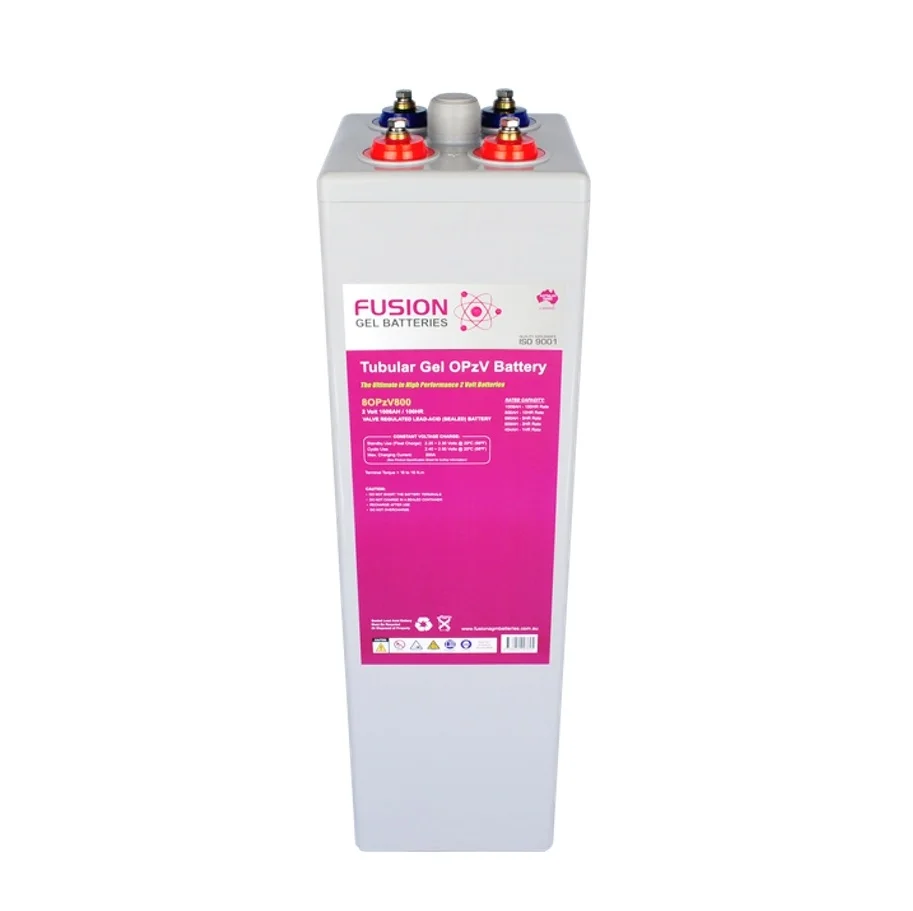

Fusion 2V OPZV Tubular Gel Solar battery
Designed to perform and last well in off grid solar systems
Delivering 3500 cycles at a 50% depth of discharge
Chemistry life of 20 years
Design life in an off grid power system 12 - 15 years
These batteries will also achieve a long life in an off grid/standalone power application.
True Gel Technology
Maintenance free
Non-Spillable Sealed
5 Years Full Warranty
Fusion OPzV Series batteries are a Tubular Gel Battery VRLA (Valve Regulated Lead Acid) that is completely sealed, spill proof, leak proof and can be used both vertically and horizontally with no loss of performance or concern of electrolyte leakage. They are engineered with true Gel Technology and use Tubular Die-Cast positive plate which prevents active material shedding, has fine corrosion-resisting performance and ensures high reliability, stable performance and longer life.
The Battery features advanced micro-pore PVC-SiO2 separators from Europe that have big porosity & low resistance and state-of-the-art safety valves from Germany that prevents dry up. The battery also adopts a German designed gas silicon dioxide, electrolyte in a gel state that prevents flowing, leakage & lamination.
The gel electrolyte and the process where gases are recombined within the cell mean that no electrolyte is lost during the life of the battery. Therefore it is never necessary to top up your Fusion Gel OPzV Battery. Apart from keeping the top of the battery and the connections clean and free from contaminants, nil maintenance is required.
Fusion Gel OPzV Batteries Boasts a service life up to 20 years in continuous float operation down to approx 80% capacity and an Extremely Low Rate of Self-Discharge of than 50% of rated capacity in 2 years at 20°C ambient temperature.
Fusion Gel OPzV Batteries are manufactured to Quality Assurance Standard ISO 9001 and come with 5 Years Full Replacement Warranty.
General Features
Ultra High Performance Tubular VRLA Gel - Non-spillable
20 Years Design Life
Engineered with True Gel Technology
Superior Cyclic Life - Up to 5,875 cycles at 30% Depth of Discharge
Minimal Gassing - Due to antimony-free alloy and internal oxygen recombination
Good Overcharge Ability
Deep Discharge Protected - A load can be connected to the battery for up to 4 weeks
Tubular Die Cast Plate Technology - Offering high reliability, stable performance and longer life
No Acid Stratification – Meaning no equalizing charge necessary
Wide Operating Temperature Range -20°C to 55°C
Extremely Low Rate of Self-Discharge – Less than 50% of rated capacity in 2 years at 20°C ambient temp
Better Safety Performance & Reliability
Can be used Vertically or Horizontally - With no loss of performance or concern of electrolyte leakage
Easy to Move, Handle & Install - Using cable connectors with insulated terminal covers
Virtually Eliminates Maintenance & Servicing Costs
Better Temperature Resistance Performance
No Internal Short Circuits Possible - Due to the gel structure
Flame Retardant ABS Plastic & Flame Arrestors - To prevent sparks entering the battery for added safety
Superior Design & Quality - Manufactured to Quality Assurance Standard ISO 9001
5 Years Full Replacement Warranty
